Why do my sprinklers mist instead of spray?

Fine mist usually means pressure at the head is higher than the nozzle is designed for, so droplets break up and drift. Pressure-regulating heads or bodies fix that at the source. Mist also blows onto walls and paving, which wastes water in the hot months when every drop counts.

Sprinkler Head Replacement

Replace broken, sunken or mismatched heads so each zone throws an even pattern that meets the next head.

Request an estimate(623) 288-0259

When a head needs replacing rather than adjusting

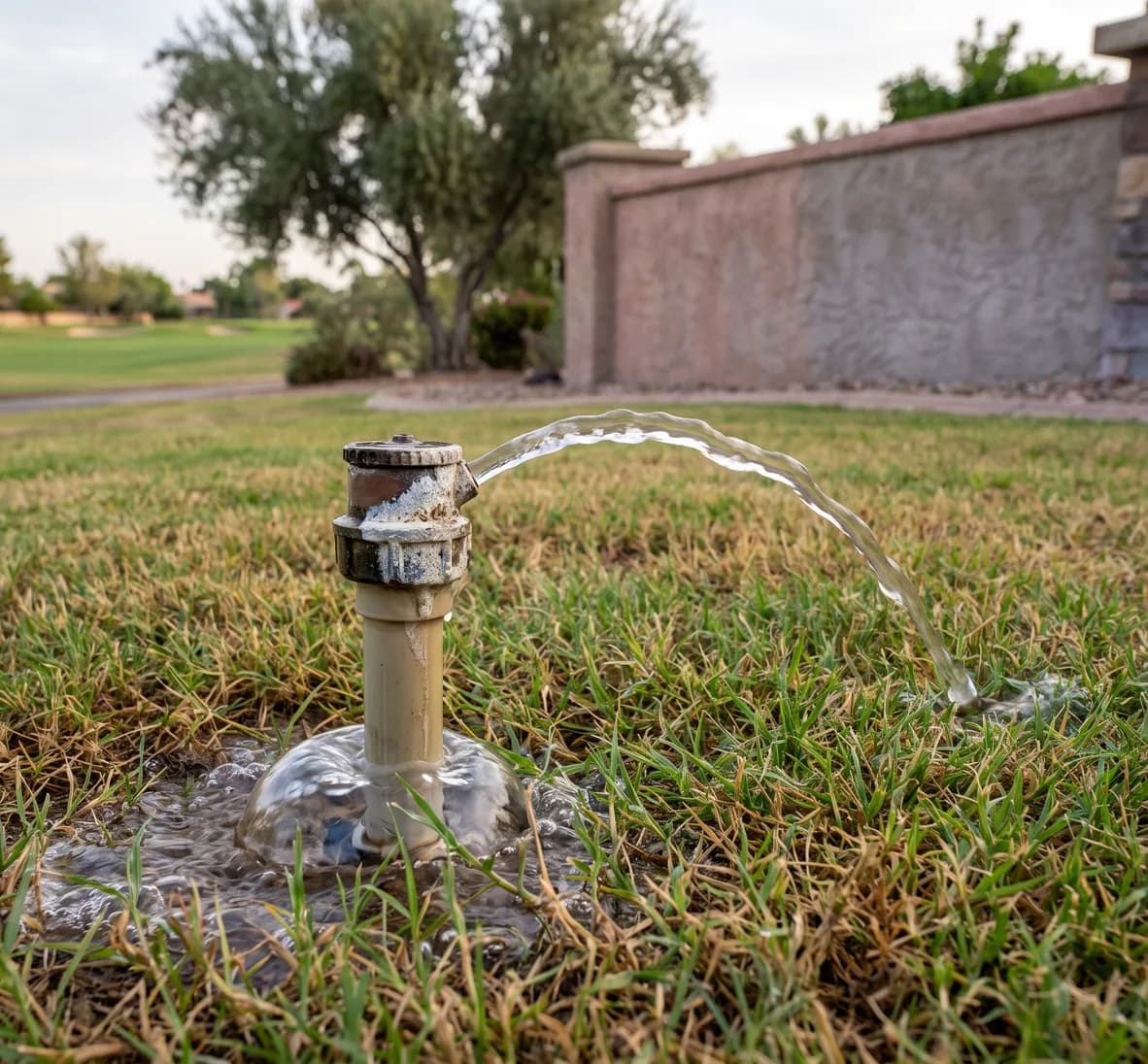

Some head problems are fixed with a turn of a screw: an arc that has drifted, a nozzle that needs cleaning, or a head that only needs straightening. A new head is needed when the case is split, the pop-up stem sticks, the wiper seal leaks so water pours out around the stem, or the head has been run over or kicked so often that it no longer holds its position. EPA WaterSense advises checking for broken and clogged heads before summer heat makes the waste costly.

A single replaced head is matched to its neighbours by type, pop-up height and nozzle. Mixing a high-output rotor into a zone of low-output spray heads, or a full-circle nozzle beside quarter circles, leaves some areas drenched and others dry, because every head on the valve runs for the same minutes.

Hard water plays a part in Sun City: EPCOR's 2025 report puts hardness at 7 to 11 grains per gallon, and scale on a nozzle bends the spray pattern long before the head body fails.

Match the zone, not just the hole

Where a zone has collected years of different heads and nozzles, replacing the set is often more effective than chasing individual dry spots. The work sets each head to grade, raises heads that turf or gravel has buried, aims every arc away from walls and paving, and checks that each spray reaches the next head. Pressure-regulating bodies help where misting shows the pressure is higher than the nozzles want.

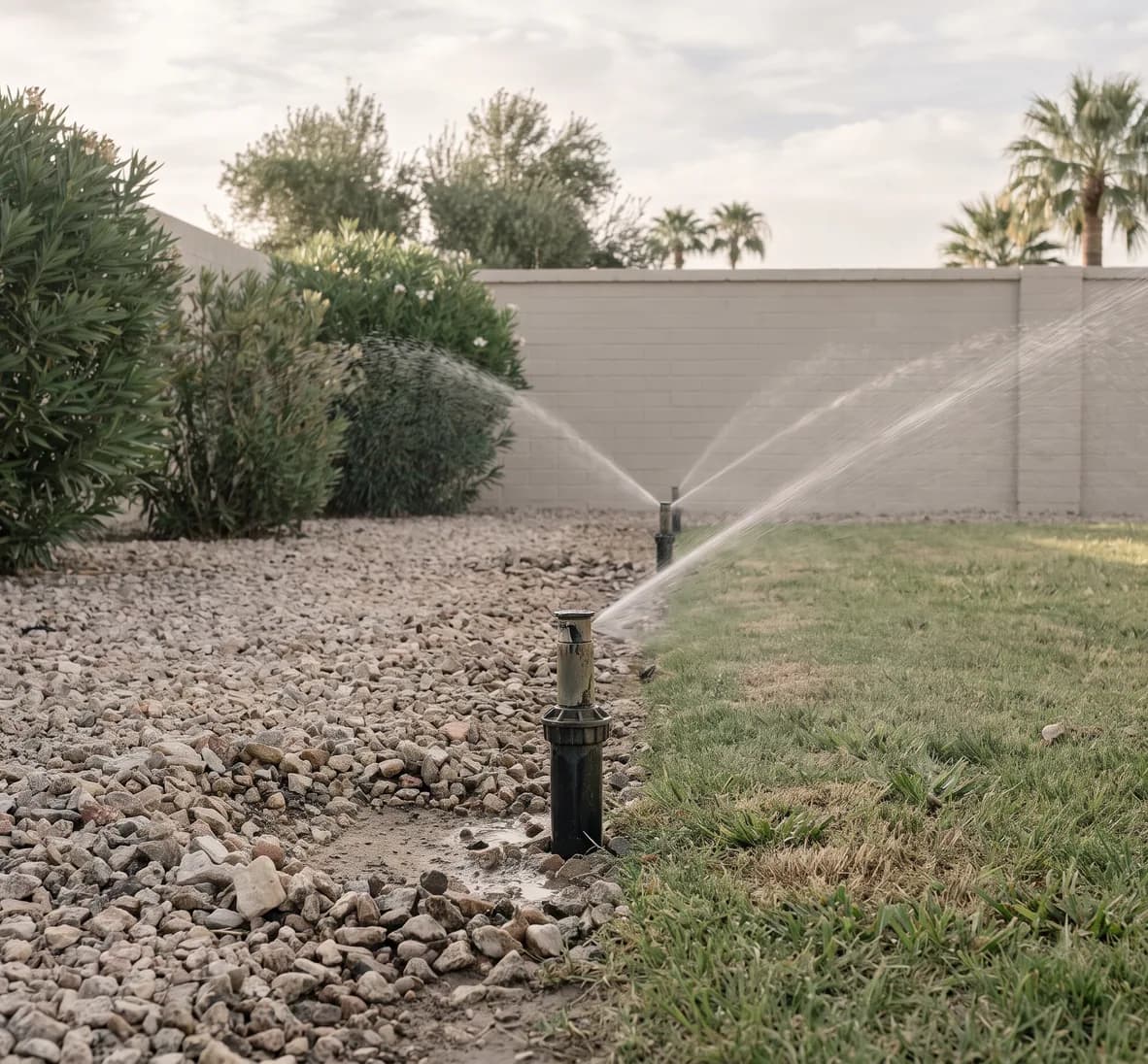

Heads in decomposed granite or rock beds need care too: stones lodged around the stem stop it retracting, and a head that cannot retract gets broken. After replacement the zone is run and walked, and the run time is reviewed because a better-matched zone usually needs less of it. Broader coverage complaints start with sprinkler repair, and whole-yard measurement belongs with the irrigation efficiency audit.

Source: US EPA WaterSense, When It's Hot, Checked Oct 1, 2026
